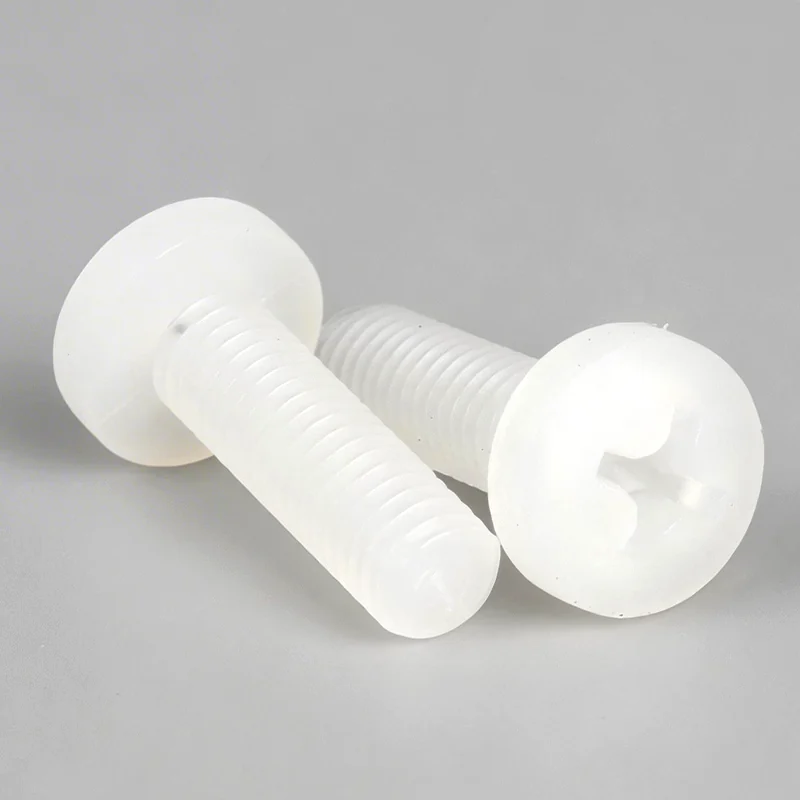

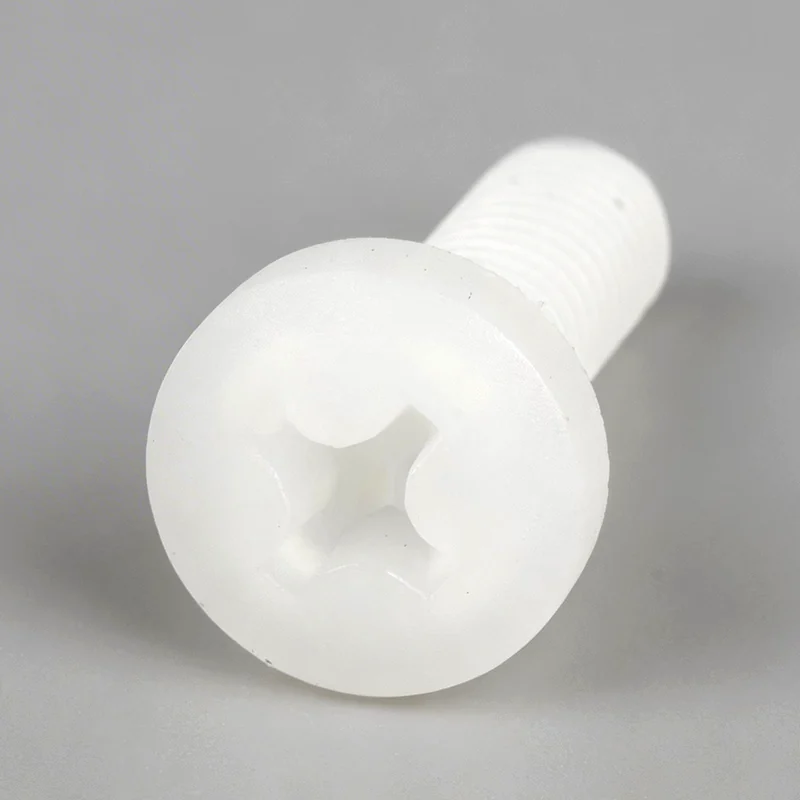

PVDF Cross Recess Pan Head Screws are polyvinylidene fluoride fasteners specified with a pan head and cross-shaped recessed drive. Flybear supplies this product through a B2B RFQ process rather than fixed online retail specifications. Production requirements are reviewed against customer drawings, physical samples, BOMs, product lists or other confirmed technical documentation. Exact PVDF material grade, thread geometry, screw dimensions, dimensional tolerances, color, surface appearance, applicable standards, inspection criteria and packaging requirements remain project-specific and are confirmed before quotation and production.
PVDF Cross Recess Pan Head Screws Overview
The product is specified in PVDF material with a pan head and cross recess drive configuration. PVDF Cross Recess Pan Head Screws can be evaluated for assemblies where the engineering drawing or BOM requires this combination of polymer material, raised pan-style head geometry and recessed cross-drive installation. Exact head diameter, head height, recess dimensions, nominal thread diameter, thread form, pitch and overall screw length are according to drawing. The required PVDF grade, color and surface appearance should also be defined during RFQ whenever these characteristics are controlled by the customer specification.
Key Features
- PVDF material confirmed for the requested screw configuration; exact material grade or formulation is confirmed during RFQ.
- Pan head configuration as specified in the product description.
- Cross-shaped recessed drive without assuming a particular Phillips, Pozidriv or standardized recess designation.
- PVDF Cross Recess Pan Head Screws can be reviewed against customer-defined dimensions, thread requirements and dimensional tolerances.
- Thread form, nominal diameter, pitch and engagement requirements are according to the approved drawing or confirmed sample.
- Head diameter, head height and drive recess dimensions can be defined through customer technical documentation.
- Color and surface appearance are confirmed during RFQ rather than assumed from a generic PVDF fastener specification.
- Suitable for B2B sourcing based on drawings, samples, BOMs and project-specific product lists.
Specification Options
| Product Type | PVDF cross recess pan head screw |
| Material | Polyvinylidene fluoride (PVDF) |
| Material Grade | PVDF; exact grade or formulation confirmed during RFQ |
| Head Style | Pan head |
| Drive Type | Cross recess |
| Thread | According to drawing |
| Dimensions | According to drawing |
| Surface Finish | Confirmed during RFQ |
| Color | Confirmed during RFQ |
| Standard | Confirmed during RFQ |
| Tolerances | According to drawing |
| Inspection | According to drawing or agreed inspection requirements |
| Packaging | Confirmed during RFQ |
Typical Applications
This screw configuration may be considered for industrial assemblies where the technical documentation specifically calls for a PVDF fastener with a pan head and cross recess drive. Typical project areas may include:
- Electrical or electronic equipment using drawing-specified polymer fasteners
- Instrument housings, covers, panels and mounting components
- Plastic or other non-metallic assemblies with defined threaded connections
- Process equipment where PVDF screws are identified in engineering documentation
- Custom industrial equipment manufactured according to customer drawings or BOM requirements
Final suitability must be verified against the actual assembly design, mechanical load, operating environment, mating materials, required thread engagement and installation conditions. Any application-specific material or performance requirement should be stated in the RFQ and reviewed against the confirmed material specification.
Manufacturing and Quality Support
Customer specifications can be evaluated through our manufacturing capabilities, including drawing-based review of pan head geometry, drive recess dimensions, thread requirements and other production details. Inspection expectations can be discussed with reference to our quality process, while related industrial fastener families are available through the Products page. Additional company and manufacturing information is available from Flybear Industrial.
For PVDF Cross Recess Pan Head Screws, technical review can cover the required PVDF designation, thread specification, screw dimensions, pan head geometry, recess requirements, dimensional tolerances, appearance criteria and agreed inspection points. Special material, dimensional, inspection or packaging requirements should be included before quotation so manufacturing feasibility can be evaluated against the submitted documentation.
What to Include in Your RFQ
- Dimensioned technical drawing with relevant tolerances
- Physical samples or clear sample photos when available
- Required PVDF grade or material specification
- Thread type, nominal diameter, pitch and engagement requirements
- Head diameter, head height, recess dimensions and overall screw length
- Required surface appearance, finish and color
- Order quantity or estimated annual demand
- Inspection criteria, reports or documentation requirements
- Packaging and labeling requirements
- Delivery destination and other project-specific information
Frequently Asked Questions
Can these PVDF screws be customized?
Yes. Thread dimensions, overall length, pan head geometry, drive recess dimensions, color and other project-specific requirements can be evaluated according to customer drawings or samples. Final manufacturing feasibility is subject to technical review.
What information should I provide for quotation?
A dimensioned drawing is preferred. Physical samples, BOMs, product lists or clear photos can also support initial review. Please include material requirements, thread details, dimensions, quantity, inspection expectations and delivery destination when available.
Why is there no fixed online price?
Industrial fastener pricing depends on the confirmed material specification, dimensions, processing requirements, tolerances, order quantity, inspection level and packaging. A project-specific quotation is prepared after the technical requirements have been reviewed.
Can the PVDF grade and pan head geometry be specified?
Yes. The required PVDF grade or formulation, head diameter, head height and cross recess geometry can be defined by customer drawing or purchasing specification. Exact requirements and manufacturing feasibility are confirmed during RFQ.
Send your drawing, sample photos or product list through our contact page for technical review and quotation.
